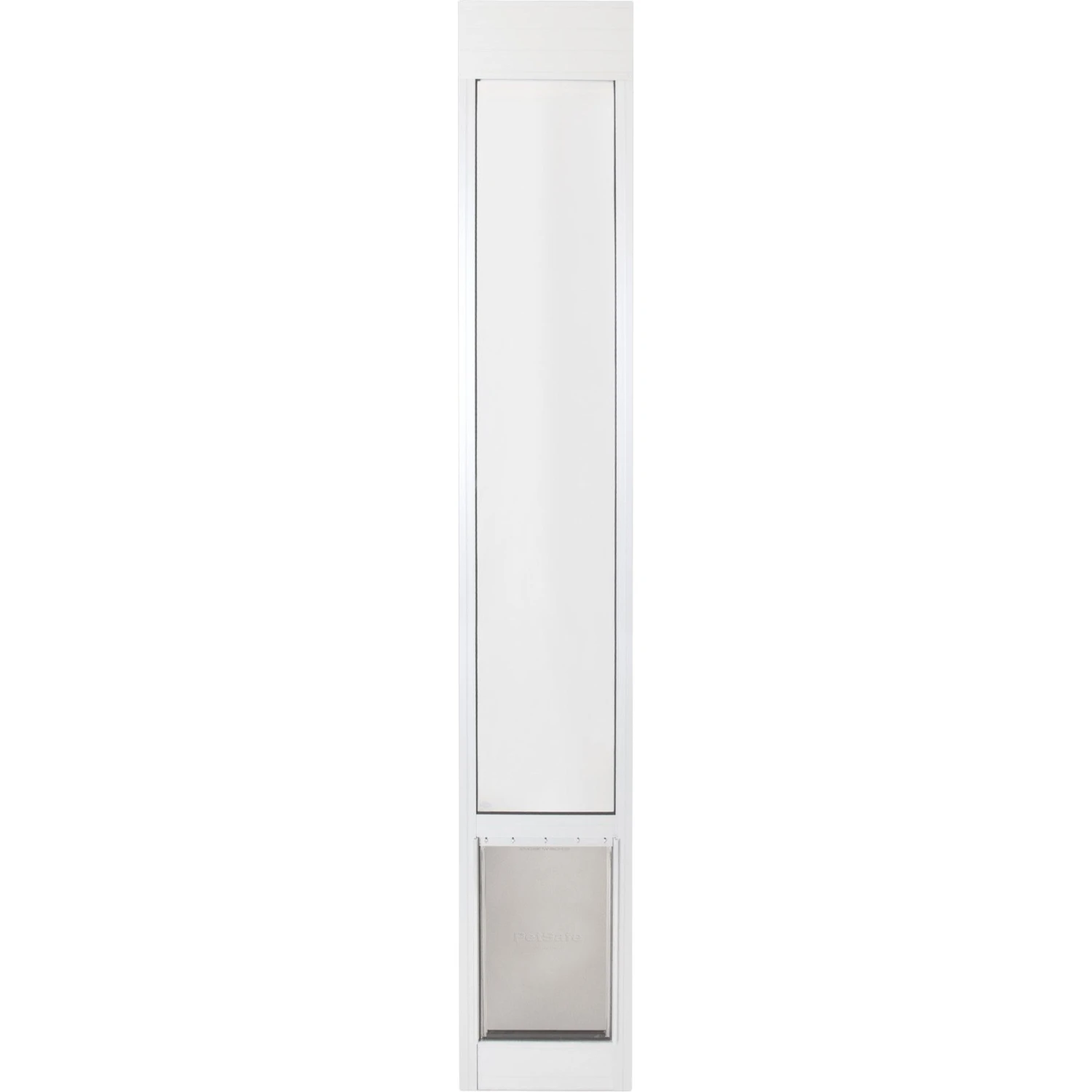

PetSafe 96-in Sliding Glass Pet Door

Original price was: $229.95.Current price is: $97.99.

SKU: Y2HLD 106598 Categories: Crates, Pens & Gates, Doors, Doors & Accessories

Protect Your Information, Shop with Safe Payments
The home of quality products.
Nature-friendly materials, for a better planet.
Quality that lasts, prices that don't.

Made of durable aluminum frame, this attachment allows your pet to come and go as he pleases through your sliding glass or screen door.
These panels feature a heavy-duty aluminum construction and shatter-resistant, tempered safety glass.
Equipped with the energy-conserving UltraSeal flexible flap system designed to keep the heat and cold outdoors.
Installation is easy, with no cutting required. Simply slide the panel into one end of your sliding door track, secure it to the frame, and add the weather stripping.
Fits left or right sliding glass doors, 91 7/16 to 96 inches tall. Does not fit recessed sliding glass doors without additional hardware.

PetSafe Freedom Patio Pet Doors for Sliding Doors allow your pet to come and go as he pleases, through your sliding glass or screen door. These panels feature a heavy-duty aluminum construction and shatter-resistant, tempered safety glass. They’re also equipped with the energy-conserving UltraSeal flexible flap system designed to keep the heat and cold outdoors. Installation is easy, with no cutting required. Simply slide the panel into one end of your sliding door track, secure it to the frame, and add the weather stripping. Open and close the other side of your door easily. And if you ever need to move, you can easily remove the panel from the frame and take it with you. Fits left or right sliding glass doors, 91 7/16 to 96 inches tall with a 3/4 inch track. Does not fit recessed sliding glass doors without additional hardware.

Specifications

Item Number	106598

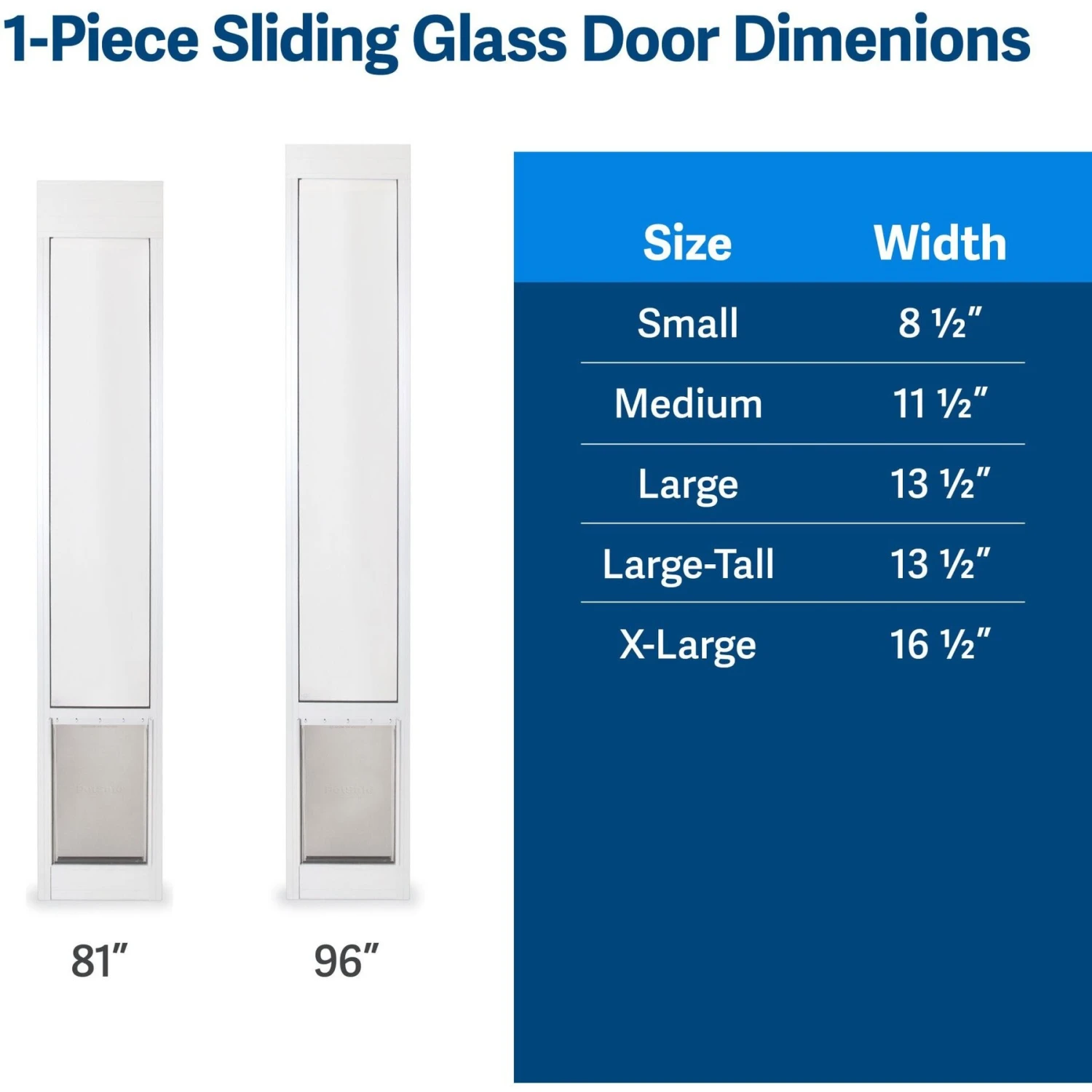

Dimensions	16 x 13.5 x 96 inches
Flap Dimensions	10.1 x 16.8 inches
Surface Compatibility	Metal, Vinyl, Aluminum
Placement	Sliding Door
Lifestage	Adult
Breed Size	Medium Breeds, Large Breeds
Features	Locking
Material	Aluminum, Plastic, Metal
Assembly Required	Yes

What’s Included

Weather stripping, glass sweep, and closing panel.

Precautions

The user, prior to installation, must become familiar with all building codes that may affect the installation of the pet door and determine, along with a licensed contractor, its suitability in a given installation. This pet door is not a fire door. It is important for the owner and contractor to consider any risks that may be present inside or outside of the pet door, and any risks that may be created by subsequent changes to your property and how they may relate to the existence and use, including misuse, of the pet door.

Lift and hold or tape the flap open using string to help your pet become familiar with the pet door opening. MAKE SURE TAPED FLAP IS SECURE AND WILL NOT FALL DURING TRAINING.
Try to encourage your pet to come through the pet door. DO NOT FORCE your pet through the door or they may become frightened.
Give your pet motivation to use the door, such as to reach food. First, feed your pet close to the pet door on the inside. Once your pet is comfortable approaching the door, move food to the other side to try to get your pet to go through the door.
After your pet has used the pet door a few times, hold the flaps open and try to get your pet to go through door while gently lowering flaps so the flap touches your pet’s back. This will help your pet become familiar with the flap.
Encourage your pet to push through the flap on his own.

Installation Step 1: Measure Your Door Frame

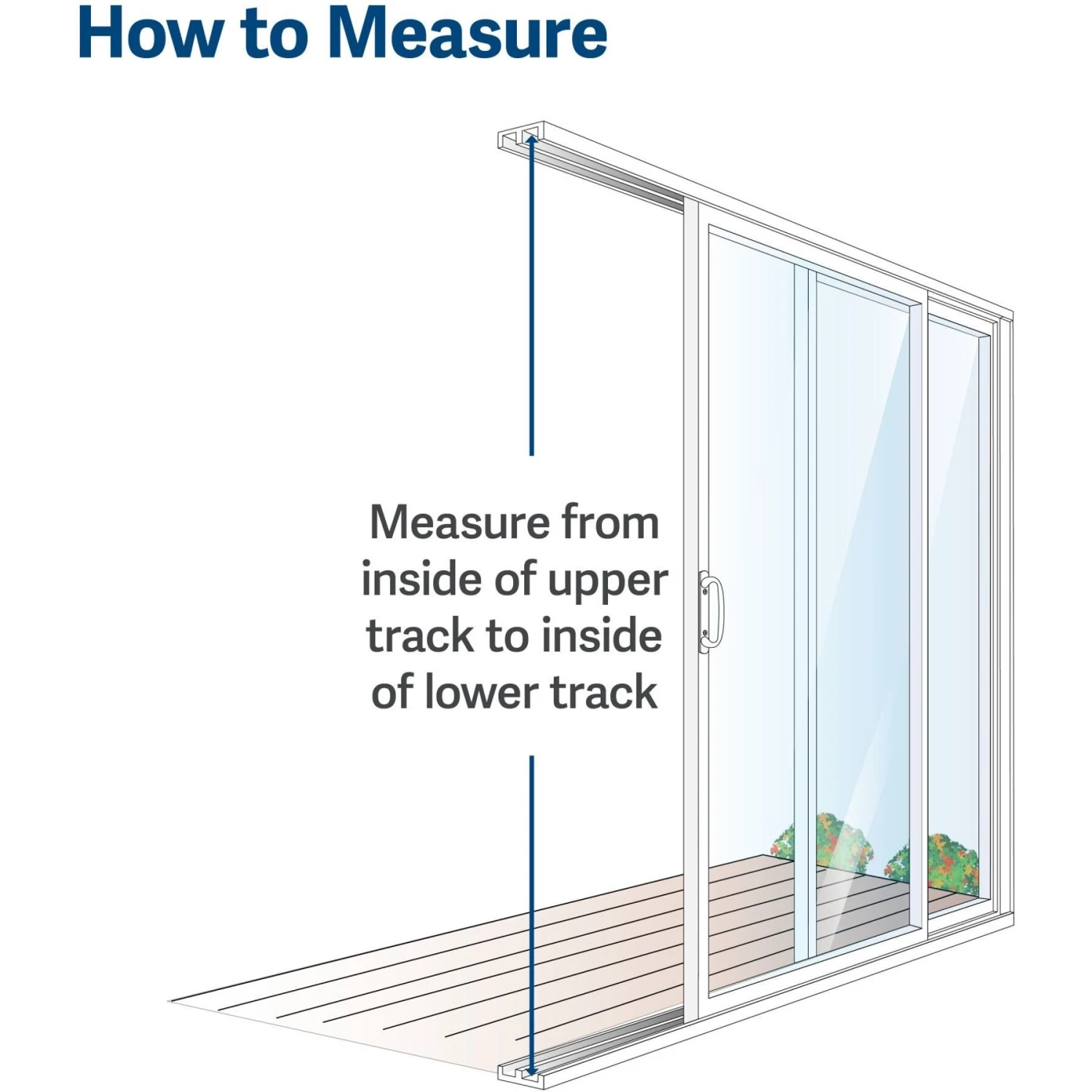

Before purchasing any Freedom® Patio Panel Pet Door, you need to determine the height of your sliding glass door frame opening. Measure from the highest point in the upper door track to the lowest point in the lower door track.

Installation Step 2: Install the Patio Panel
If you purchased a 96″ Patio Panel, first assemble the bottom section to the top section before proceeding with the installation.
Remove the 4 factory installed screws from the sides of the connection bars on the bottom door section.
Align and slide the connection bars on the bottom section into the top section.
Reinstall and tighten the 4 screws through the 4 pre-drilled holes on the sides of the top door section into the connection bars.
The Freedom Patio Panel Pet Door inserts into the opening in your sliding glass door against the doorjamb. Your sliding door will close against the Patio Panel.
With the sliding glass door open, insert the top of the Patio Panel with the height adjuster into the upper door track on the interior side of the sliding glass door.
Lift up and position the bottom of the Patio Panel into the lower door track on the interior side of the sliding glass door. Ensure the side of the Patio Panel showing the flap screw heads is on the interior side of your sliding glass door.
Move the Patio Panel against the doorjamb. The Patio Panel should fit flush against the doorjamb without any gaps. Make sure the height adjuster is fully extended and not tilted to one side. Ensure you are satisfied with the fit of the Patio Panel before drilling.

Installation Step 3: Attach the Patio Panel

Slide the Patio Panel out slightly from the door jamb to show the pre-drilled holes in the height adjuster.
Drill 7/64” (2.5 mm) holes through the two pre-drilled holes on the interior side of the height adjuster.
Secure the height adjuster to the Patio Panel using two 5/8” sheet metal screws.
Slide the Patio Panel back against the door jamb making sure it’s flush without any gaps.
To install the Patio Panel into an exposed sliding glass door frame, find the Patio Panel center at the top and mark on the sliding glass door frame.
Measure 12” from the top down along the side of the sliding glass door frame and mark.
Measure 1” above the pet door in the Patio Panel and mark on the sliding glass door frame.
Measure the center of the Patio Panel at the bottom and mark on the sliding glass door frame.
Drill 9/64” (3.5 mm) clearance holes through your sliding glass door frame only at the locations you just marked. Don’t drill into the patio panel at this time.
Before drilling into the Patio Panel, it’s important not to drill inside the Patio Panel rib lines where the glass is located. Only drill into the outer edge section. You may need to slide the Patio panel over slightly to correct before drilling.

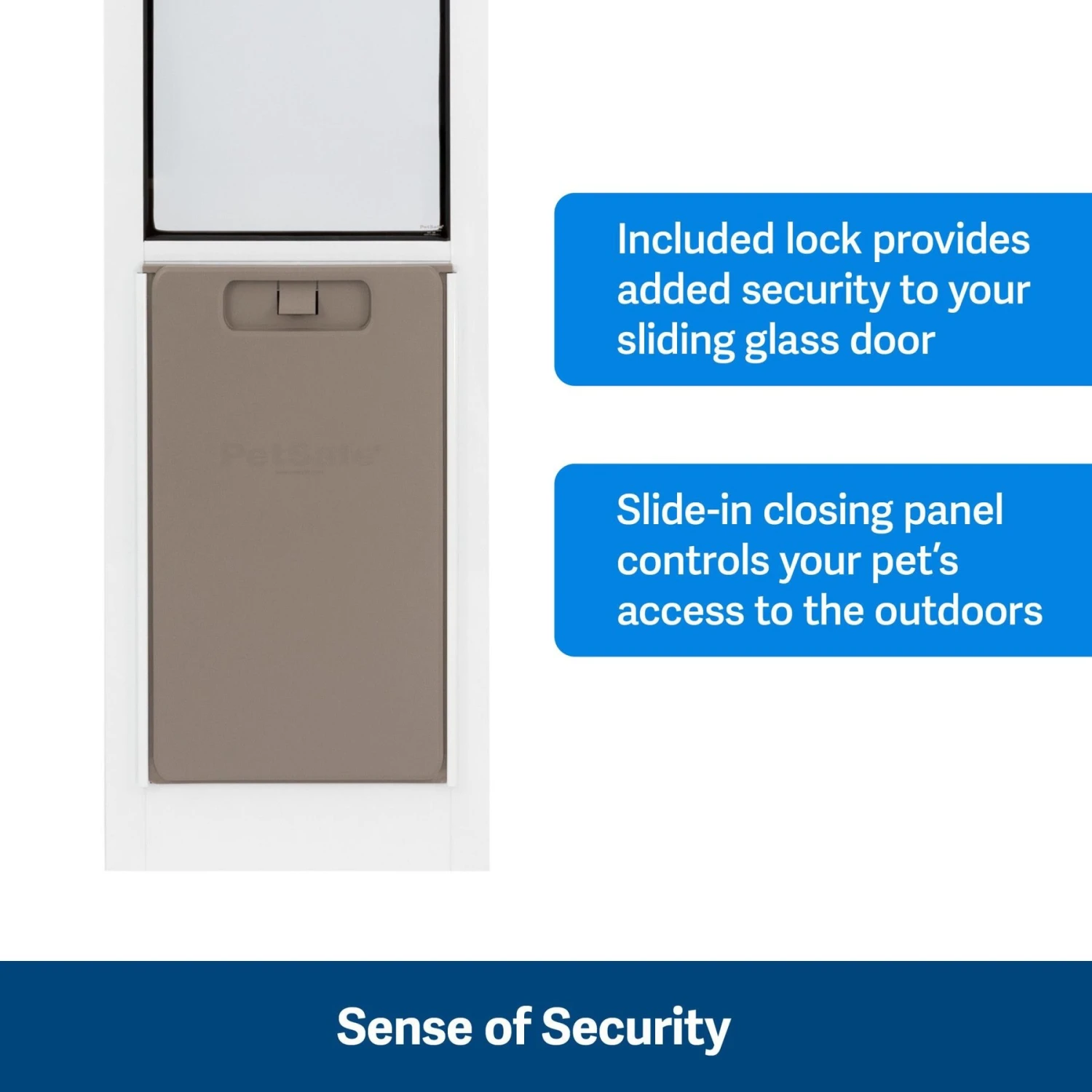

Installation Step 4: Install the Lock

Close the sliding glass door tightly against the Patio Panel and decide the most convenient height to place the door latch.
Using the template provided, align a vertical center line on the template with the door line between the sliding glass door and the Patio Panel. Keep the latch side of the template to the right.
Tape the template in place and mark the locations for the mounting screws. Remove the template when the screw marks are in place.
Drill four 7/64” (2.5 mm) holes. Don’t drill completely through to the other side of the sliding glass door or Patio Panel.
Secure the latch and keeper with four 3/4” flat head sheet metal screws. Be careful not to overtighten.

Installation Step 5: Install Glass Sweep and Weather Stripping

The glass sweep should be installed on the back edge of the sliding glass door to form a seal between the sliding glass door and the stationary glass door.
The weather stripping should be installed on the front edge of the sliding glass door to form a seal between the Freedom Patio Panel and the sliding glass door.
Close the sliding glass door against the Patio Panel. Clean and dry the back edge of the sliding glass door.
Position the glass sweep at the top glass edge with the flexible part touching the glass of the stationary door.
Carefully peel away the backing and press the glass sweep in place as you move down to the bottom of the door. Trim any excess with scissors.
Open the sliding glass door. Clean and dry the front edge of the sliding glass door.
Position the weather stripping at the top front edge toward the interior side.
Carefully peel away the backing and press the weather stripping into place as you move down to the bottom of the door. Trim any excess with scissors.
